Welcome to Precision Sail Loft!

Whether you're after a basic cruising Dacron or a performance racing membrane, our sails are trusted by cruisers and racers alike from around the globe. Starting with exceptional sail design, our process delivers sails with world class performance, shape-holding and durability. Nothing leaves our facilities without passing the Precision Sails Standard For Quality.

In other words, when comparing apples to apples, our sails are guaranteed to match the quality of the most expensive sails from the best local lofts you can find. That's because our sails are built using the same brand name cloths, thread, hardware, design software and expert craftsmanship. At the same time, due to popular demand we offer economical options for sailors on a tight budget. Simply Click Here to find your sails in our database and choose a configuration that meets your requirements.

We have a huge selection of custom sailboat sails for sale and a team of dedicated staff working to make you the best sails possible. Also, be sure to Click Here to read about our sail construction specifications. We have detailed virtually every aspect of our cloth, hardware, craftsmanship and design. We design our sails professionally in-house at our loft and encourage you to work one-on-one with our sail designers to ensure we fulfill our Perfect Fit Guarantee. So if you're looking to buy new sails with expert craftsmanship, design, sailcloth and hardware - you came to the right place!

Click Here to find your boat model and select from our huge selection of sails for sale.

If you have any other questions while browsing our site, call us at 1-888-958-5638!

1. Sail Cloth

At Precision Sails We Use Only First-Run Sail Cloth

From industry-leading North American and European manufacturers like Dimension-Polyant, Bainbridge International and Challenge Sailcloth our cloth is top of the line. With these high standards for cloth quality, we're proud to offer a 3 Year Warranty on Dacron Sails and 2 Year Warranty on all Laminate and Membrane Sails. We carry a wide range of cloths including Dacron, Laminates, Membrane, String and Fibres such as Carbon and Aramid. Here are your cloth choices for our Standard Cruising Sails:

Cruising

Challenge High Modulus Dacron	Challenge Atlantic (formerly Coastal Cruise) Cruising Dacron
This High Modulus Dacron is the go to cloth for performance sailing at a great price. Featuring very tight weaves and high yarn count, this low stretch cloth is our most recommended Dacron This is the most common cruising Dacron used in the industry. Minimizing stretch is the key to creating durable and shape holding sails for easy handling and trim at a great price. The rest comes in the craftsmanship, design and attention to detail that we put into our very popular High Modulus Dacron Sails.	Atlantic Cruise is designed with a medium-firm finish with purpose-driven construction made for a long-lasting cruising lifespan. Made with high tenacity yarn which is specifically engineered for cruising activities you can rest assured while out on the water that Atlantic will power through the whatever elements you encounter. If you are looking for a quality designed sail but, on a budget, consider Atlantic Cruise by Challenge Sailcloth.
Challenge Newport All Purpose	Contender Charter Cloth
Newport All Purpose has been specifically treated to have very high fill (1%) with fiber 104 in both directions and that makes Newport AP suitable for sails with high leech load paths and demanding shapes. Maximum stretch resistance will also ensure effortless handling and maximum enjoyment. This is an all-purpose cruising fabric for quality at a reasonable price and can suit your every adventurous journey in the world of tranquility – inshore, offshore– to assure you of speed and durability.	Contender Charter cloth was developed specifically for worldwide charter fleets and designed to meet the demands of UV protection and the problem of wear during long periods of time on the water. To offset these issues Contender developed larger denier warps to add to the chafe and tear resistance of the cloth which increases its strength and stretch resistance. It also provides UV protection over a longer period of time. By using special looms, careful selection of yarn, and heavy warps, this becomes an economical fabric with exceptional quality.

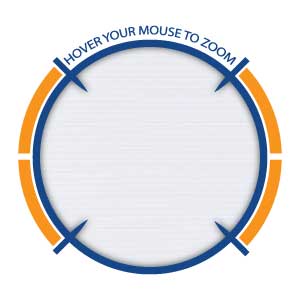

Contender Supercruise	Bainbridge Ocean Series SPX Balanced 25
Everyone wants a good price, but not at the expense of quality. That is what makes Supercruise by Contender Sailcloth such a good value. Between the quality fabric and superior construction, you will find improved stretch resistance, bias stability, and excellent fabric recovery. Its finish is designed to balance the shape-holding quality that will reflect in its good furling and ease of flaking. In order to give you the best product, this sailcloth is made from high-tenacity polyester and is woven on looms without the use of shuttles to promise the most consistent and defect free material with very tight weaves. If your preference is cruising, rather than racing, you know that your sails must still be durable. Since stretching affects a sail’s shape and, therefore, the boat’s handling, Contender’s Supercruise will add to the comfort and delight on your next excursion.	Because of its unique construction design, precise production control, and yarn selection the SPX range of fabric is highly recommended for Genoa types of sails. Specifically, the SPX Balanced is expressly designed for its high tenacity yarns that give it the strength and durability for larger boats and tall ships. This cloth is tailored to allow for an optimum finish that is easy to handle and dependable. The fill is produced as a high sley with a high warp count matched with high fill denier. There are four finishes available for this cloth. The H finish will handle hard and is best for one design racing. F finish is firm handling and appropriate for general uses including charter. An M finish is medium handling and is great for general cruising. The S or soft finish will be best for ocean sails. Altogether this material will suit a wide range of sail applications and features while retaining the strength and durability necessary for enjoyable navigation.
Bainbridge Ocean Series SPX Strong Fill 55	Contender Fibercon Pro with Polypreg
Due to the success of the Balanced 25 SPX series of cloth Bainbridge created the Strong Fill 55. Inherintly ideal for high aspect sail designs the increased drubablity comes from the construction and strength that comes from its production. Produced as a high sley fabric with increased warp count matching its highfill denier this cloth is easier to handle and is consistant in quality. This cloth has been manufactured in specific ways to reduce the cost of the cloth in order to pass the savings onto you!	This cloth utilizes Fibercon yarns with a polypreg finish to provide a sail with the shape holding ability and strength to last many seasons of crusing. Built for performance oriented sailors this cloth is made to meet whatever challenge you put it through. The combined stability and dependablility of this cloth will see you traveling the world without worrying about replacing your sails anytime soon.
Challenge Marblehead/Fibre 104 Dacron	Bainbridge HSX Strong Fill
This Premium Challenge Dacron comes in both High (Fiber 104 with Honeywell 1W70) and Low (Marblehead) aspect versions depending on your rig. The advantage in this cloth over the traditional Dacron's is the tightness of the weave and very high yarn count allowing the cloths strength to come directly from the weave and less depended on resins to hold sail shape.The result is a tougher, more durable and excellent bias control. What does this mean to you? Less sail deformation and the longest life of all Dacron sails!	Bainbridge International’s HSX Strong Fill has been developed to be exceptionally durable by combining strong composition and special UV inhibitors into the finished product. Known for it’s strength and performance, these sails will be easier to handle but will continue to deliver performance consistently and dependably. It is constructed from a high Sley fabric with a high warp count as well as a high fill denier to guarantee exceptional fill modulus. The robust design of this cloth is what makes this a dependable sailcloth material that will stand the test of time.

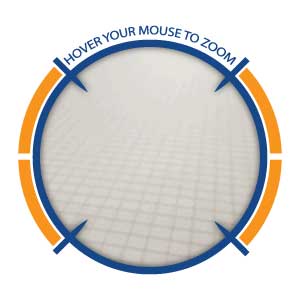

Bainbridge HSX Balanced	Challenge Warp Drive
If you are the owner of a larger boat, the higher weight and applicability to a wide range of construction styles, of the HSX Balanced 22 woven dacron will suit your next order for a sail. Because the strength between warp and fill are near parity, it becomes extremely durable. Which means it is ideal for cruising and year-round usage. It has a balanced denier construction that will benefit an assortment of sail applications. The high warp and fill denier will provide outstanding fill modulus. Ideal for those sailors looking for the best cloth at a great price this cloth will provide wonderful strength and lifespan to suit your needs.	For many years, the sailing industry has tried to come up with a strong cloth that lies between medium and heavy weight for taking care of tri-Radial sails. Customarily, tri-radial sails were only possible through the use of membrane cloth, because it was very difficult to weave a warp-oriented cloth. Challenge Sailcloth invented Warp-Drive which is made up through the process of weaving straight warp yarns in heavy fabrics. This cloth is a great cloth for a sailor looking for a longer lasting shape, and more performance over traditional cross cut sails without the expense of a laminate! This cloth offers easy to handle material in a radial construction with the bonus of being mildew resistant!
Bainbridge HSX Strong Warp	Contender Fibercon Pro Radial
Bainbridge’s Strong Warp 15 is part of the HSX family of fabrics. This cloth is extra strong combining precise weaving and a unique UV stabilized finish. Perfectly suited for radial construction, this is a warp-oriented cloth with good warp modulus. Different weights are available for dynamic radial construction to fulfill the load needs of your sails. It offers balanced denier and precise control of inline tension minimizing warp crimp. It is manufactured with the latest fill and digitally controlled finishing techniques to provide you with the ideal product for your next venture. This radial Dacron is a wonderful choice for those looking for a sail with increased stretch resistance and long term lifespan.	Fibercon® Pro Radial from Contender was designed to meet the needs of radial cut sails. The unique yarns and weaving techniques produce a line of sailcloth with high UV survival with a superb duration period. Because they are produced in a wide range of weights, they can be used in a wide range of sail sizes. In fact, different weights can be incorporated into the same sail to accommodate its particular load needs. For sails that are more performance oriented, we recommend a firm Polypreg finish. This will offer greater stability. The medium Polypreg finish will give better handling.

Cruising Laminates - Performance Cruising

Contender CDX	Bainbridge Polyester Cruising Laminate
This Radial Performance Sail comes from one of the top sail cloth manufacturers in the world, Contender. This sail has exceptional bias stability and tear strength that comes from the ZigZag polyester fibers laminated between the taffeta The ZigZag polyester fibers stabilize the radial loads, allowing for a longer retention of sail shape. The USA woven UV treated polyester taffetas on both sides of the laminated cloth provide addition durability and UV protection. The CDX laminates are best for the sailors who are continually in varying wind strengths, allowing stability due to the strength of the evenly distributed ZigZag laminated panels. Perfect for a easy to handle sail because the sail shape stays flatter longer, points higher and heals less as the wind increases! Handling and strength is what sets this Contender CDX cloth apart from other Cruise Laminates!	No one wants their sail to fail. The Polyester Cruise Laminates by Bainbridge International will give you the performance you want at a cost you can afford while offering the stretch resistance and shape retention that you need. It is constructed with a high-quality polyester fiber with a 0-90 load bearing scrim. Manufactured using special techniques, warp crimp is virtually eliminated. Layered in a double taffeta style to increase UV protection also adds the bonus of mildew resistance. This means your sail will last longer and still be easy to use and handle after miles in the sun. Because they are laminated on both sides, they will prove durable for navigating the ocean for racing or sheer pleasure.
Bainbridge CL-DIAX-LSP	Bainbridge CL-DIAX-P
CL-DIAX-LSP is a mid-range cloth that is stronger, stretches less, and is lighter in weight, all of which add up to a perfect fabric when you are considering a replacement mainsail or jib. Combine this with its price and it makes an excellent investment for cruising. This cloth features a 45-degree DIAX scrim and twin film construction that will result in better shape retention by reducing stretch and taffeta is added to increase UV resistance for the life of the sail. Less stretch will give you more forward drive and less heeling over which means you and your guests will notice the extra comfort during your voyage. This cloth is also mildew-resistant that you will find has a soft hand to improve sailing through light winds. If you are looking for a versatile cloth for cruising, go with CL-DIAX-LSP.	CL DIAX P is a fabric that is appropriate for use on 30- to 50- foot yachts but can be used on craft up to 60 feet. This fabric uses taffeta-on-taffeta laminates with a polyester warp fiber. This translates to reduced elongation and better handling. It comes in white and gold DIAX and has increased bias polyester and double taffeta. Sails made from CL-P are a solid investment in your cruising pleasure. The polyester taffetas protect the load-bearing scrim. Since they are both lightweight and durable, they will provide better handling and retain their shape in a reasonable price range. With lamination on both sides, it supplies the endurance to sail through all conditions for mile upon mile offering the performance, shape retention, and price that owners are looking for.
Dimension Polyant GPL Lite Skin	Dimension Polyant Carbon Sport Lite Skin
GPL Graph X Lite Skin® is a composite fabric that has been developed for both racers and cruisers of boats exceeding 40 feet in length. It has proven durable with a sleek visual. The appearance is striking with its opaque finish as contrasted with the conventional look and is available in seven different weight categories. This cloth is specifically designed for extending the life expectancy by incorporating abrasion resistance but maintaining the inner scrim. Lighter than double taffeta, it gives better performance and is more durable during races. While cruising the sail will handle better than those with taffeta backing. It dries quicker through evaporation, which means less overall absorption. It can accommodate glued seams for less stretch under load and a softer hand means less creasing and film shrinkage. With an opaque finish there will be fewer visible seams and you will experience easier sail trim.	Carbon Sport Lite Skin is a sister product in the Carbon Sport line by Dimension. Using a carbon based inner structure, it provides a strong, durable fabric with low stretch that is favored by club racers around the world. This is a laminate that has proven to be an outstanding performer. This cloth is known for its high tenacity fibers and lamination process. Dimension Polyant has devoted resources towards customizing equipment for the weaving and lamination process which allows them to produce this exceptional cloth. Available in four weights, this cloth has shown its ability to reduce stretch while maintaining its strength during cruising on boats under 40 feet. This Lite Skin sail offers better handling with a softer hand as well as decreased weight and water evaporation.
Contender Fibercon Warp Tech
Fibercon® Pro Warp Tech is the latest arrival in the radial cut category of woven sailcloth from Contender Sailcloth. The Warp Tech style features elements like balancing fiber denier, increased count, and crimp. These constructions have formed their line of high-performance fabric. The Fibercon Pro Warp Tech is composed of enough fill fiber to give strength and durability to the weave unlike some other radial styles which sacrifice them. The finish is very firm in hand and will offer maximum fabric stability. This will result in a fast flying shape. Aimed at the racer or racer-cruiser, Fibercon Pro Warp Tech offers the performance you want and the resilience you need.

Club Racing

Structured Tape Technora	Club Technora
Polyester Scrim in a cross cut construction forms the base of these great club racing sails. The base is covered by load bearing tape / fibres laminated on both sides of the sail. The tapes are constructed from technora aramid black fibres that are laid over a polyester scrim base. This addresses the leech to luff load demands of club racers. These sails are rugged yet lightweight. The structural technora tapes create a very strong grid pattern that in return acts as a rip-stop. This overlapping rip-stop prevents excessive tear damages over the lifespan of the sail. The 50mm tapes are constructed of 4 rows of technora fibres. This sail comes standard as a clear film on film configuration. Also available with a single taffeta surface. The taffeta adds weight but also increases durability and lifespan of the sail. Inquire within 60 hours after purchasing online. No additional cost to add a single taffeta.	This sail is constructed with narrow panel membrane construction technology and strung with aramid (Technora) laid load path fibers to support the sail. The Club Technora consist of two layers of film sandwiching a black polyester x-ply scrim and custom strung technora fibres. The fibres provide a better strength to weight ratio compared with other types of sail construction. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. Technora fibers have excellent stretch and UV resistance and are very good in flex when compared to Kevlar. Technora has a range of unmatched performance properties, including: High tensile strength (weight for weight) Technora is eight times stronger than steel Good fatigue resistance Long-term dimensional stability Excellent resistance to saltwater High elongation before break and high elasticity. Also available in a gold color. Inquire within 60 hours after purchasing online. No additional cost to gold color.
Black Polyester Radial Laminate (Dimension-Polyant)	Twaron Advanced Membrane
This sails is constructed with a film on film shell, black x-ply and strengthened with a black coated polyester. The black coating on the polyester helps increase the UV resistant properties when compared to standard white polyester fibre. This Black Polyester Radial cloth is known for its exceptional performance characteristics as a polyester laminate. Greatly suited for many race classes that specify polyester as the only class legal fiber. This advanced club racing radial is slightly more expensive because of its name brand, design and labour required for a radial constructed sail.	This sail is constructed with narrow or wide panel (depending on sail area) membrane construction technology and strung with aramid (Twaron) laid load path fibers to support the sail. The Twaron Advanced Membrane consist of two layers of film sandwiching a polyester black x-ply scrim and custom strung twaron fibres. An advanced twaron scrim is used instead of typical polyester scrim in our Club Racing sails. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. The fibres provide a better strength to weight ratio compared with other types of sail construction. Twaron has a range of unmatched performance properties, including: High tensile strength at low weight High Modulus, structural rigidity and excellent dimensional stability Good resistance to abrasion and cutting Very strong allowing for use in large boats without use of other stronger fibres
Carbon / Twaron Advanced Membrane	Carbon Advanced Membrane
This sail is constructed with narrow or wide panel (depending on sail area) membrane construction technology and strung with Carbon and Twaron laid load path fibers to support the sail. The Carbon / Twaron Advanced Membrane consist of two layers of film sandwiching a polyester black x-ply scrim and custom strung Carbon and Twaron fibres. By mixing Carbon and Twaron we are able to build a sail that is stronger than a Twaron fibre on its own. This keeps the price more affordable than a carbon only sail. This sail will be lighter and stronger than the Twaron Advanced Membrane and heavier than the Carbon Advanced Membrane. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. The fibres provide a better strength to weight ratio compared with other types of sail construction. Twaron has a range of unmatched performance properties, including: High tensile strength at low weight High Modulus, structural rigidity and excellent dimensional stability Good resistance to abrasion and cutting Very strong allowing for use in large boats without use of other stronger fibres Carbon has a range of unmatched performance properties, including: Highest strength to weight ratio Good Rigidity Corrosion resistant Fatigue Resistant Good tensile strength but Brittle High UV resistance	This sail is constructed with narrow or wide panel (depending on sail area) membrane construction technology and strung with Carbon load path fibers to support the sail. This Carbon Advanced Membrane consist of two layers of film sandwiching a polyester black x-ply scrim and custom strung carbon fibres. Carbon has the best strength to weight ratio and UV resistance of all fibres. This creates the best performing and UV resistance sail. The downside to this fibre is that it is fairly brittle so you must avoid folding and bending the fibres as much as possible. If you are willing to take care of this type of sail it will outperform other options. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. The fibres provide a better strength to weight ratio compared with other types of sail construction. Carbon has a range of unmatched performance properties, including: Highest strength to weight ratio Good Rigidity Corrosion resistant Fatigue Resistant Good tensile strength but Brittle High UV resistance

Performance Racing

Twaron Advanced Membrane	Black X-Tech Radial Laminate (Dimension-Polyant)
This sail is constructed with narrow or wide panel (depending on sail area) membrane construction technology and strung with aramid (Twaron) laid load path fibers to support the sail. The Twaron Advanced Membrane consist of two layers of film sandwiching an advanced gold twaron x-ply scrim and custom strung twaron fibres. An advanced twaron scrim is used instead of typical polyester scrim in our Club Racing sails. The fibres provide a better strength to weight ratio compared with other types of sail construction. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. Twaron has a range of unmatched performance properties, including: High tensile strength at low weight High Modulus, structural rigidity and excellent dimensional stability Good resistance to abrasion and cutting Very strong allowing for use in large boats without the use of other stronger fibres	This radial constructed technora fibre laminate is highly advanced and balanced to prevent unwanted elongation. This cloth utilized two high end technora scrims instead of typical polyester scrim. The technora scrim is fill orientated for increased luff to leech strength. This is critical for roller furling and over-lapping headsails. High tenacity technora fibre offers high flex and impact durability. Black aramid warp fibers provide load line strength in tri-radial construction. Black die on the technora fibres increase UV resistance. This radial cloth comes from one of the best names in the racing industry, Dimension-Polyant!
Carbon / Technora Advanced Membrane	GPL GraphX Performance Radial Laminate (Dimension-Polyant)
This sail is constructed with narrow or wide panel (depending on sail area) membrane construction technology and strung with carbon and technora load path fibers to support the sail. This Performance Carbon / Technora Advanced Membrane consist of two layers of film sandwiching the best aramid black x-ply scrim and mixture of carbon and aramid fibres. Carbon is the lowest weight and highest strength fibre but it tends to be brittle on its own. By adding technora fibres with the carbon it supports the carbon and gives the sail increased durability and flex over a carbon only sail. The technora makes up for the weaknesses of carbon fibres and the carbon provides a much higher performance sail. Fibres are denser where the sail experiences the heaviest loads and less dense where the sail experiences minimal loads. This eliminates additional weight in unloaded areas. Carbon has a range of unmatched performance properties, including: Highest strength to weight ratio Good Rigidity Corrosion resistant Fatigue Resistant Good tensile strength but Brittle High UV resistance Carbon's low flexibility is supported by the technora fibres which has the highest flexibility. Carbon alone has a low resistance to shock loading but technora fibres have one of the highest levels of elongation and shock loading before breaking.	Superior fiber handling and advanced lamination technology using a patented insert process makes this radial laminate the most durable carbon laminate on the market today. High strength carbon warp sheet fiber, super rugged technora scrim and technora x-ply create this super sail! This laminate offers incredible resistant to flex, elongation and degradation from UV exposure! The sail is constructed with 5 layers laminated and inserted together: 1) Film 2) Carbon Fiber Inserts (Patented Insert Process) 3) Technora Black Scrim 4) Technora X-ply 5) Film This radial cloth comes from one of the best names in the racing industry, Dimension-Polyant! It is their highest end racing cloth!

Our Sail Cloth Suppliers

2. Off Shore Specifications

Strong as Rock, Light as a Feather

Double Tape	Wide Seams
Leech, Luff and Foot tapes are all doubled. The extra tape layer give the sail much more strength on the outer edges of the sail. Usually one tape is larger than the other. For example on a larger sail we may use a 100mm tape and a 75mm tape together for the double tapes.	Wider seams are used and an extra row of stitching is added to off shore sails. Where a sail might normally have a 30mm wide seam with 2 rows of stitching we would now use a 38mm seam with 3 rows of stitching.

Reinforcements

As pictured below, we add many types of reinforcement to an offshore sail. Precision Sails offshore spec sails are designed to withstand the strongest of winds. Many lofts won't compare in the level of detail and reinforcements added. Always be sure to ask what makes your offshore sail different than a regular sail. We don't always add all of these specification below but the larger the sail, the more likely all of the below specifications will be added. The offshore package placed on your sail will be optimal for your boat size. On large boat sails you are likely to see all of the specifications below.

Leech and Luff Reinforcement Belts strengthen the sail along the leech and luff where the sail experiences a lot of forces.
Leech Seam Wedgies prevent the seams along the leech from splitting.
Double Ply Layers on all Patches increase the number of layers of sail cloth on each of the patches. This adds a tremendous amount of extra strength. This includes corner, reef and eyelet patches.
Reef Reinforcement Belts further increase the strength of your reef points and foot of the sail when reefed.

Hardware Upgrades

With an off shore sail we often upgrade the hardware as well.

On a Mainsail this usually means larger battens and batten pockets, metal sliders, larger diameter press rings and more reinforcement webbing on each corner. Sometimes you will get an upgraded headboard and most of the time a second headboard slider.

On a Headsail this means larger webbing straps and a larger diameter clew press ring.

3. Sail Hardware

Hardware You Can Trust

Our design team works closely with clients to customize the hardware used on every sail. Whether your boat has mainsail cars, standard slides, tides marine track or bolt rope we are here to help. Hardware is very important in the life of the sail and it must be custom fit to your specific boat. A mistake in hardware can lead to more maintenance over time and an added expense for those on a budget. By ensuring your boat is outfitted with the proper hardware, our team helps to avoid any extra potential costs. We truly work closely with every client to ensure great fitting sails.

Our standard sail hardware comes from Challenge Sail Cloth and Bainbridge International. Often times sails require special parts from other hardware manufacturers. We can supply parts from just about any hardware supplier but our most popular are Harken, Tides Marine, Rutgerson, Antal, Bainbridge International and Challenge Sail Cloth. If you require something special let us know.

Battens	Receptacles
These flexible fiber glass battens come standard in 3 sizes: 15mm x 3mm, 30mm x 3mm, and 50mm x 3mm. Battens will give you more sail area and add durability to your sail.	Quality batten receptacles from Challenge and Bainbridge will always hold your battens firmly in place.
Sliders	Hanks
With 100's of sizes from Bainbridge and Challenge your mainsail will always fit no matter what type of mast profile you have.	Brass and stainless steel piston hanks ensure hank-on sails always easily raise and lower. The strong construction ensure they stand up in harsh ocean environments.
Cleats	Rings
Quality alloy cleats ensure your leech and foot lines are always secured.	It takes upwards of 50 tons of pressure to press large diameter rings. Your main sail will come with 10mm, 12mm 20mm, 25mm 30mm, 35mm, 40mm, 50mm or 60mm press rings.
Headboards	Blocks
High tech metal alloy headboards accompany all mainsails. Extra webbing and a press ring is added to hold the headboard in place.Made from a metal alloy, these headboards will stand the test of time.	In mast furling mainsail are usually on large boats and so a quality clew block is required. Clew blocks are webbed on and varients are available.
Thread
UV Protected Waxed white thread is used on all of our sails. Thread weights come in V30, V46, V69, V92, V138, V207. Upgrades are available to different colors and to Tenara Gore-Tex Thread.

Our Hardware Suppliers

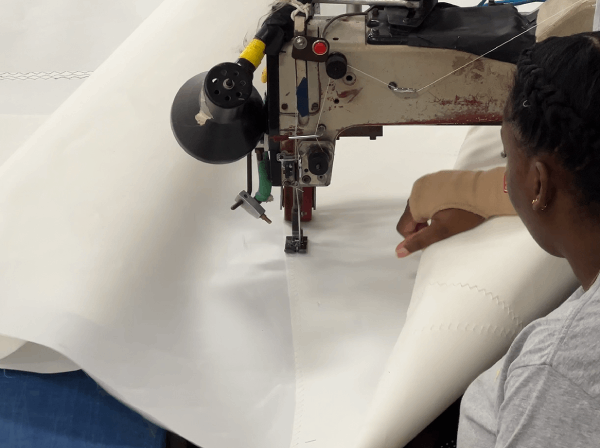

4. Sail Craftsmanship

Perfect Right Down To The Last Detail

General

Stitching	Corner Patches
Our designers choose the appropriate seam widths that are used in each sail. For long lasting Dacron sails, you must ensure there is enough strength in the stitching to hold the load of the sail. This is why we use triple step zig zag on all seams which adds strength and stops broken threads from unraveling like a row of standard zig zag stitching. This will lower required maintenance over the life of the sail. Larger seams will always have additional rows of stitching. Where a small sail may have 1 row of stitching, a large sail could have 4 or more.	We design corners patches that better distribute the load, whether it's with standard block patches or stronger reinforced radial patches. Radial corner patches typically have near double the number of sail cloth layers at the corner. Our unique radial corner design is stronger and more durable than the competition. This is always a recommended upgrade. The corner patches extra cloth layers create a longer lasting sail and prevents premature material failure. It's important that your new sail does not use precut corner patches. Our designers ensure custom corners and reinforcements on every sail.
Lines	Reinforcement Webbing
Leech and Foot lines ensure your sail is always working well even after many years of heavy use. Leech lines prevent fluttering and cloth fatigue. Lines come in Kevlar, Polyester, and Vectran.	Extra strength reinforcement webbing is used on the tack, clew and reefing rings / cringles as well as on headboards. This spreads the loads at critical points ensuring maximum sail durability.
Tell Tales	Draft Stripes
Quality wool tell tales are placed on both sides of your head sail and nylon strips are placed along the leech of your mainsail. These are typically placed in 3 spots but depending on the size of your sail this may differ. Tell tales aid in the process of trimming a sail	Highly visible draft strips come standard in many colors including blue, green, red, black, white and grey. We can do multi stripes or singles stripes. Draft strips are typically in two or three locations and help you to determine the curvature of the sail.
Tapes	Sail Bag
Tapes run along all three sides of your sail. Proper sizing ensures durability without degrading performance. Single layered tapes are standard where double layered tape is used for offshore sails.	All of our sails come standard with an appropriately sized drawstring sail bag to help you transport and store your new sail.
Sail Number	Insignia
Usually placed on your mainsail, sail numbers are used for identification in sail boat races as well as if you are in trouble on the water. They can also be used by pirates to identify your boat so be careful! Our standard sail numbers are applied with insignia cloth. This is a special heavy duty uv resistant sticker material that comes in blue, black, red, green and yellow. Sail numbers can also be printed onto your sail to minimize weight.	An insignia is the sail boat manufactures logo or a custom graphic usually placed towards the top of your mainsail. These are laser cut from insignia cloth which is a special heavy duty uv resistant sticker material that comes in blue, black, red, green and yellow. Insignias can also be printed onto your sail to minimize weight.

Mainsail

Mainsail Clew	Clew Slug
Large diameter heavy duty press rings are used on the clew of your mainsail. These rings come in 14mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm and 60mm sizes. An appropriate size will be used for your sail. Depending on your configuration a clew slug may also be added.	A heavy duty metal clew slug is attached to the clew corner if your rig does not have an out haul car. This slug holds your sail down to your boom in the vertical direction just like a clew car would. The slug is webbed on with multiple layers of webbing strap and slides easily in the boom.
Mainsail Tack	Mainsail Head
A press or round ring will be used on the tack of your sail. This is typically slightly smaller than your clew ring. The placement of your mainsail tack is very important for proper fit. We hand cut our mainsail tack corners to ensure the placement of your tack is perfect.	Aluminum head boards of different sizes and styles come from Challenge, Bainbridge and Antal. Webbing is added for extra reinforcement and stronger metal sliders are used to secure the sail at the head.
Reef Points	Sliders
Strong reinforced patches on the luff and leech along with heavy duty press rings allow for easy reefing. A row of reef eyelets between the luff and leech allow for clean storage of excess sail. Positioning of reef points can be customized during design but our standard positioning is 11%, 22% and 33% up the luff. This can vary with batten positioning.	Reinforcement patches, chafe protection and heavy duty press rings secure the mainsail slider attachment points. Sliders are hand stitched to the sail with several loops of webbing and special heavy duty waxed thread.
Cunningham	Flattener
A heavy duty press ring and an extra cunningham reinforcement patch is placed about 6" to 12" above the tack to allow for tightening the luff of the sail. This sail control helps you move the draft forward or aft to control optimal sail shape.	The flattener is positioned just above the clew on the leech of the main sail. This option is much like a cunningham in that it allows you to control the shape of the sail. In this case it is mainly used to flatten the shape of your main sail.
Batten Pockets	Overhead Leech Line
A batten pocket that performs well is essential in keeping your battens secured and in place. Extra pocket reinforcement is standard. We offer several pocket types including, flip flop, velcro insert, tie in, and leech wrap. Our standard is flip flop but we always recommend the velcro insert.	Overhead leech lines are standard for boats over 40'. The leech line runs up the leech, around a block at the head and down the luff. This is ideal when your boom is high in the air making it hard to get at a standard leech line.

Headsail

Headsail Clew	Headsail Tack and Head
An appropriate but oversized press ring will be used so that using large or multiple sheets is not a problem. These rings come in 14mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm and 60mm sizes. As always this ring will be reinforced with webbing straps.	A furling head sail will have a webbing loop at the tack and head. This is best because the webbing loop allows the sail to easily roll around itself while having its corners remain fixed. Webbing comes in 25mm, 30mm and 38mm sizes.
UV Protection	Velcro Tab Leech and Foot Lines
Dacron or Sunbrella (Acrylic) UV Protection is added to furling head sails to protect the sail cloth when furled. We use a special formula to ensure your sail has enough uv protection but not too much as this adds unnecessary weight to your sail. UV is placed along the leech and foot of the sail and standard colors are White, Navy Blue, Pacific Blue, Forest Green, Black, Grey, Red, and Burgundy.	Velcro tab leech and foot line ends are used because they hold their position best when the sail is flogging. A velcro pocket covers the lines and ensures everything is protected from the sun.
Foam Luff	Tell Tale Window
A Foam Luff provides better sail shape and cleaner leading edge by flattening the sail as it is furled. This means improved performance in reefed conditions. Foam luff is recommended in most cases but if you are in very humid conditions a rope will be used instead of foam. This will always be placed on the opposite side as your UV Protection.	Tell tale windows are a round window placed at the tell tales of a head sail so you can see the tell tales on the opposite side of the sail easily. This is an additional option you can add to your sail.

5. Sail Design

Perfect Sails Start With Perfect Design

Software	Analysis
Designed using industry leading Sail Design software Sail Pack, your sails will always have a leading edge. Don't be fooled by other online sail companies that don't and can't design your sails. All designs are done in our head office and our designers customize every order, unlike many sail makers in the industry, Nothing is standard.	3D Modeling to understand strain and load paths of the sail cloth is done on all sails. Cloth warp and fill fibre orientation is taken into account for proper load assessment. Areas of high load and the effects of the bias elongation with a Cunningham, halyard and out haul tensions are also considered. Custom modeling for each clients sail, taking into considerations, mast bend, rake, boom position, head widths and custom leech roaches is a critical part of every design.
Customized	Designers
All of our sails are custom designed specifically for your boat, not for another like it. Just like people, every boat is different, even production model boats have differences. By customizing every design not only do you get the best possible fitting sail, you're also able to make changes that you wouldn't get to otherwise. For example have you ever wanted to be able to see under your head sail better? Maybe your boom keeps hitting your dodger or even your head? Both of these are easily solved with our custom design. This means you don't get a reused sail design originally for someone else. Sails designs are always available upon request. Just ask us and we'll be happy to send your design to you.	Because we design all of our sails in house, you always have an opportunity to speak with one of our sail designers about your sail. Just ask and we'll even give you a personal design overview. Professional service and professional advice means you get prompt, courteous and expert customer service. We understand that purchasing new sails can be confusing and we are here to make it pain free, informative and enjoyable.
